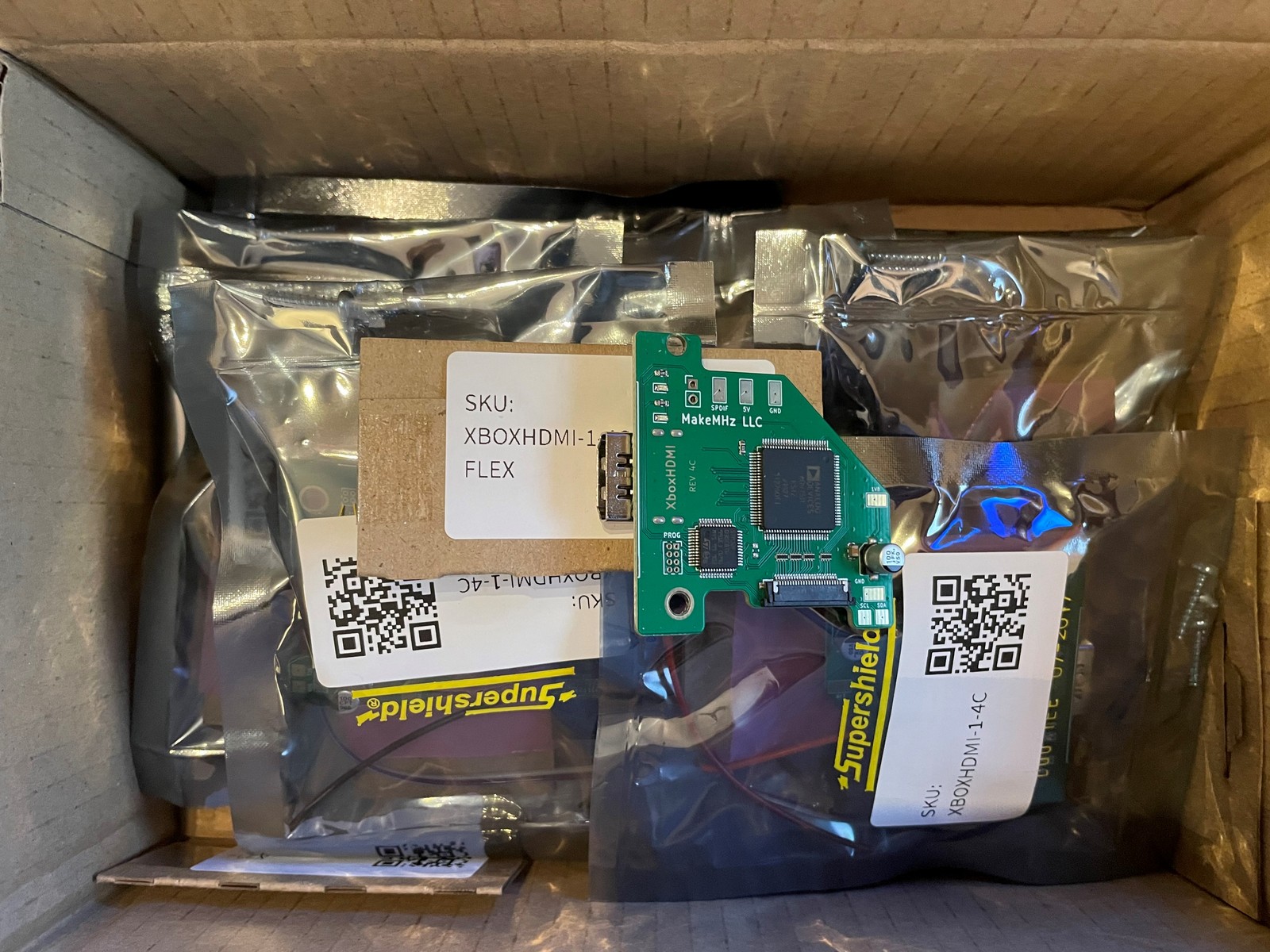

The first and only purely digital video output mod for the original Microsoft Xbox.
Video is captured directly off of the pixel data bus from the GPU, encoded, and sent directly to your HD TV with no added interpolation or frame-buffering for a crystal clear, no added lag, video output.
But pixel-perfect video isn't all the XboxHDMI offers.
Audio is captured from the Xbox's digital SPDIF audio and output over the HDMI connector, and with the correct receiver allow for 5.1 Dolby Digital audio on select games.
XboxHDMI has been in development for over a year and fully tested on every board variation and revision.
XboxHDMI was designed from the ground up to be the best possible solution for your original Xbox.
Pixel perfect digital video. Supports all official Xbox video resolutions. (480i, 480p, 576i, 720P, and 1080i)
Crystal clear digital audio with surround-sound and Dolby Digital pass-through.
Upgradable firmware via our Xbox application for additional future features, bug fixes, etc!
HDMI CEC support.
Completely reversible! 100% no-cut mod.
Optional force 480P. (Force 480i games to run in 480p)
Optional auto anamorphic widescreen for widescreen 480P content. By default, 16:9 480P content will be stretched to fullscreen as the game intended. Avoid the hassle of having to adjust your TV's zoom/aspect ratio when switch between widescreen and none-widescreen 480P games.
3D HOLDER + HDMI BOARD = 100 euro
Install of Kit + Holder = 65 euro

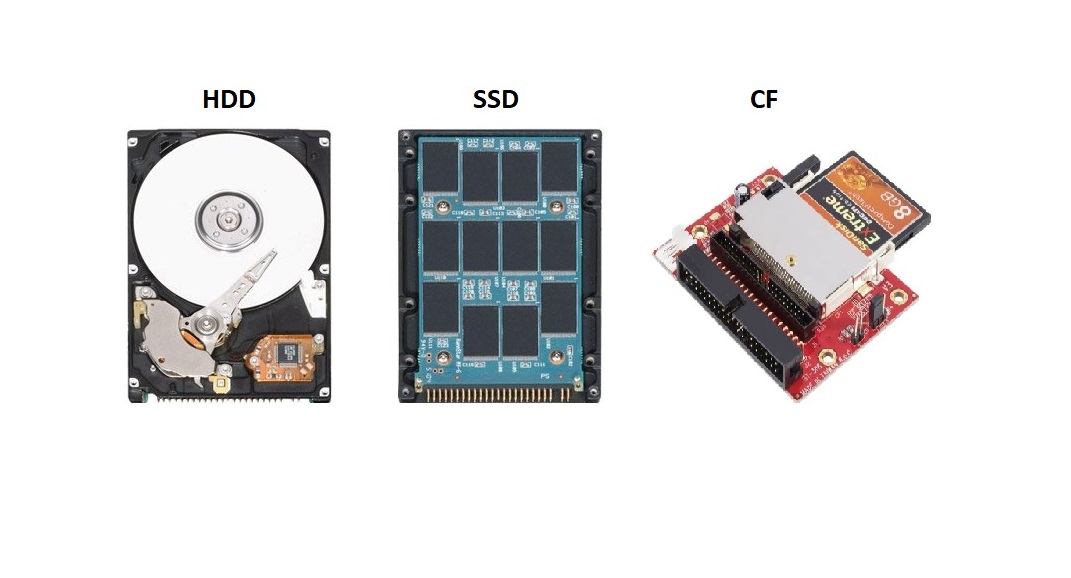

We can change your old / broken HDD with a new (bigger one) you have the choice between a regular spinning HDD / SSD / Compaq Flash storage card
The capacitor for the clock is know to leak (v1-v5) best is to remove this one
We can also do a recap of the motherboard an powersupply
The Original fan can be replaced with a more silent model
